CJ Series European Jaw Crusher For Sale

The CJ Series Jaw Crusher is a primary crushing plant with superior performance, and is known in the industry as a rock crushing pioneer. Compared with the traditional jaw crusher, it occupies less space, has a larger crushing ratio, runs more smoothly, and has more advantages in transportation and installation, maintenance and adjustment. It is especially suitable for fixed crushing line and mobile crushing plant.

CJ-Series-European-Jaw-Crusher

With advanced primary crushing technology, the CJ Series European Jaw Crusher can handle the hardest ores up to a maximum size of 2,000 millimeters, combined with secondary crushing equipment (such as cone crusher and impact crusher) in the whole stone crushing production line.

Whether it is crushing hard rocks and pebbles, building and recycling concrete, or processing aggregates, all need to be equipped with high quality jaw crusher equipment. the CJ series jaw crusher is designed with attention to detail, structural improvement and good operating performance, and the processed finished products are characterized by uniform particle size, high three-dimensional content of the finished product, and high sales volume of the finished product, which can satisfy the requirements of high-standard materials in certain fields, such as building and so on.

Type of CJ Jaw Crusher for Sale – Single Equipment

The CJ Jaw Crusher is a powerful crusher that is an advanced version of the regular jaw crusher with improvements in efficiency and performance. In addition, the Euro Jaw Crusher is a little more expensive than the regular jaw crusher.

The CJ jaw crusher stands out from the chunlei jaw crusher as it offers higher throughput and better crushing efficiency due to its higher feeding capacity and high strength steel plate liner structure. If you are in need of an efficient and durable jaw crusher for the mining or construction industry, the CJ Euro Jaw Crusher will be the ideal crushing solution for your material processing needs.

CJ-Series-European-Jaw-Crushe-and-pe-jaw-crusher
ModelFeed Port Size (mm)Maximum Feed Particle Size (mm)Discharge Port Adjustment Range (mm)Processing Capacity(t/h)Motor Power(kw)Overall Dimensions (Length × Width × Height) (mm)
CJ96480930×58060-175105-3904P 902850×2270×1950
CJ1065601060×70070-200150-5004P 1103280×2580×2400
CJ1207001200×87070-200175-6104P 1603700×2790×2950
CJ1257601250×950100-250270-8314P 1604230×2780×2960
CJ1509601400×1200125-250340-8804P 2005030×3440×3970
CJ1609601600×1200150-300430-11454P 2505780×3460×3580
CJ20012002000×1500175-300630-14356P 4006600×4030×4400
CJ15118501500×1070125-300425-11956P 2004130×3000×3330
CJ151310401500×1300150-300530-12806P 2004620×2890×4190



Note: The output will vary depending on different materials, feed particle size and other factors.

The CJ Euro Jaw Crusher can be customized according to production capacity, geography, climate and other factors, and the color can be customized according to customer requirements.

Features of CJ Jaw Crusher Machine

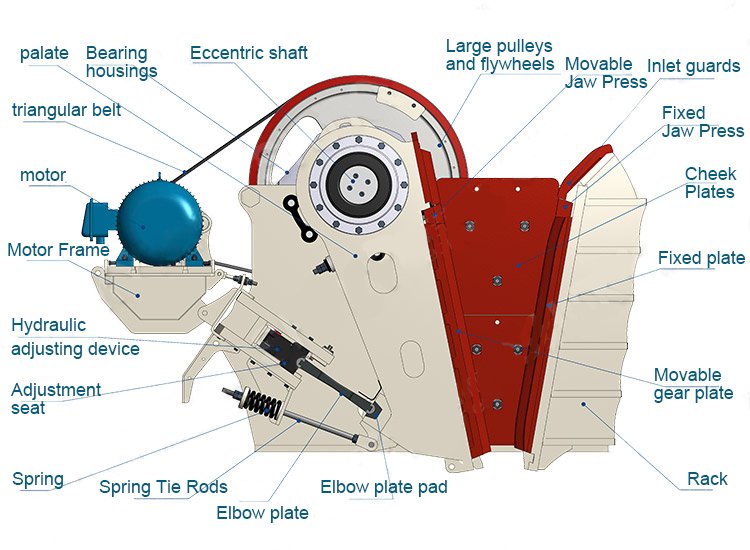

CJ-Series-European-Jaw-Crusher

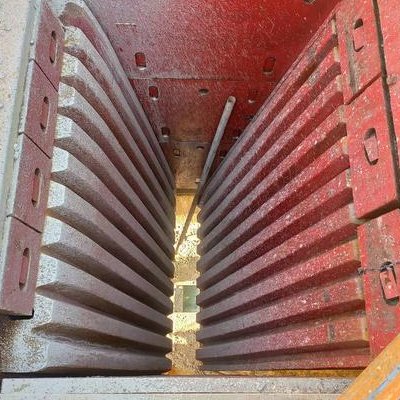

CJ-Jaw-Crusher-parts
  • Deep “V” design: The mining jaw crusher adopts “V” type crushing chamber design, optimizing the configuration of the crushing chamber structure and the parameters of the movable jaw movement trajectory, maximizing the feed size, output and crushing ratio.
  • Unique flywheel design:  Adopting elastic limit block and rubber vibration damping device to replace the original rigid foot connection, which effectively reduces vibration and makes the machine work stably.
  • Integrated motor base design: The integrated motor base design reduces the installation space of the equipment and makes the power output more stable.
  • Easy maintenance: adopting high wear-resistant tooth plate, long maintenance cycle and cost saving.
  • Low failure rate: Reliable performance, optimized design, low failure rate.

Working Principle of Jaw Crusher Machine

Jaw crusher works on the principle of crushing materials by the relative motion between two jaw plates (movable jaw and static jaw), i.e. movable jaw and static jaw, which mimic the movement of animal jaws to accomplish the material crushing operation. They mimic the movement of an animal’s lower jaw to accomplish the material crushing operation. The moving jaw reciprocates relative to the static jaw, and the material fed from the top chamber is compressed between the two jaw plates and crushed into small pieces. When the movable jaw plate leaves the static jaw plate, the crushed material is discharged from the discharge opening under the action of gravity. This working principle enables the jaw crusher to complete the crushing operation efficiently.

CJ-Series-European-Jaw-Crusher
Jaw Crusher

Jaw Crusher Application in Crushing Plants

Jaw crusher is widely used in the following fields:

Mining mines: jaw crusher crushes the mined large ores to improve the beneficiation efficiency and metal recovery rate.

Building materials: crushing limestone, granite, etc. for manufacturing building materials such as sand, gravel and aggregate.

Chemical industry: Jaw crusher is used to crush various kinds of coal, coke, gypsum and other chemical raw materials.

Water conservancy project: to provide sand and gravel materials required for water conservancy project construction.

Highway and railroad construction: Jaw crusher crushes various road base materials such as stone and gravel, and the crushed materials are used for laying road base and pavement.

Metallurgical industry: crushing scrap steel, scrap iron, slag and other metal ores to provide raw materials for smelting.

CJ-Series-European-Jaw-Crusher

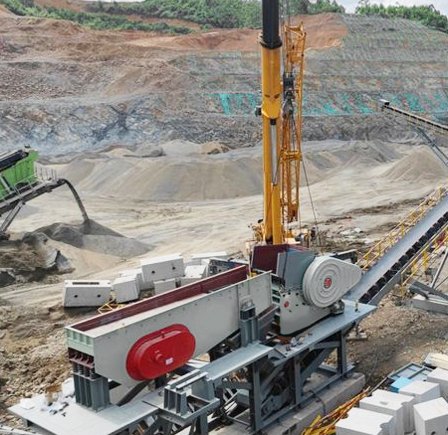

CJ-Jaw-Crusher-customer site

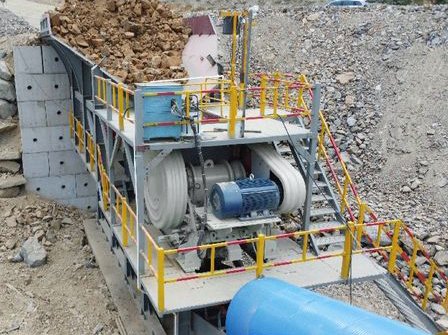

CJ-Jaw-Crusher-customer site

What Should You Consider When Choosing CJ Jaw Crusher?

If you are planning to buy a jaw crusher, then you need to consider many factors in advance, such as capacity, feed size, discharge aggregate size, application, price, service, return and so on. Here I have listed a few important parts for your reference:

Feeding size

The first thing you should consider is the feed size. Customers should probably know the size of the material aggregate before crushing. Because customized jaw crusher models are mainly divided according to the feed size.

Capacity should also be one of the factors to consider. If you plan to crush a large amount of aggregate in a short period of time, it is better to choose a large capacity crusher. If there is enough time, a smaller size crusher may be more cost effective.

Jaw crusher cost is the most important aspect for customers to consider. It is very important for customers to choose a jaw crusher with the best price and within their budget. Chunlei offers different models of crushers with different prices. Please contact us and get the latest primary jaw crusher price.

For mining machinery industry, choosing a reliable and serviceable jaw crusher manufacturer is very important for customers. Crushing production line is a complete set of solutions customized for customers. Therefore, it needs constant communication, follow-up and feedback. The best service can help customers save a lot of maintenance after-sales service costs.

For the mining industry, especially for large-scale mining machinery, it is especially important for customers to choose a reliable and well-served jaw crusher manufacturer. The crushing line is a complete solution customized for the customer. Therefore, both parties need constant communication, follow-up and feedback. Meticulous service can help customers save a lot of maintenance and after-sale costs.

What Can ChunLei Do for You About Jaw Crusher Service?

our-advantages
  • Pre-sales service: 1.Assist customers to prepare the first construction plan; 2. Provide route guidance, reception at any time, and visit our factory at any time.
  • On-sale service: 1. Provide example guidance at any time by phone or email; 2. Install, debug and inspect the equipment, and provide technical support through video.
  • After-sales service: 1. Provide spare parts at the best price for a long time; 2. We provide 1 year warranty and technical support to ensure the smooth operation of the machine.

You may also want to know about ChunLei-FAQ

1. Are you a factory or a trading company?
We are factory, and in 2008 officially registered ChunLei Machinery.

2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.

3.How about price?
We are factory and can give you lower price than the market, and we have a policy “In order to save time and absolutely honest business attitude, we provide the lowest possible quotation for any customer, and can give discounts as needed to the quantity” .

4. How long is the warranty?
Does your company supply the spare parts? One year. Spare parts for you at lowest cost.

5. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.

6. What is your payment method?
We usually accept T/T, L/C、Western Union payments;

7. If I need a complete mining rig, can you help us build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
