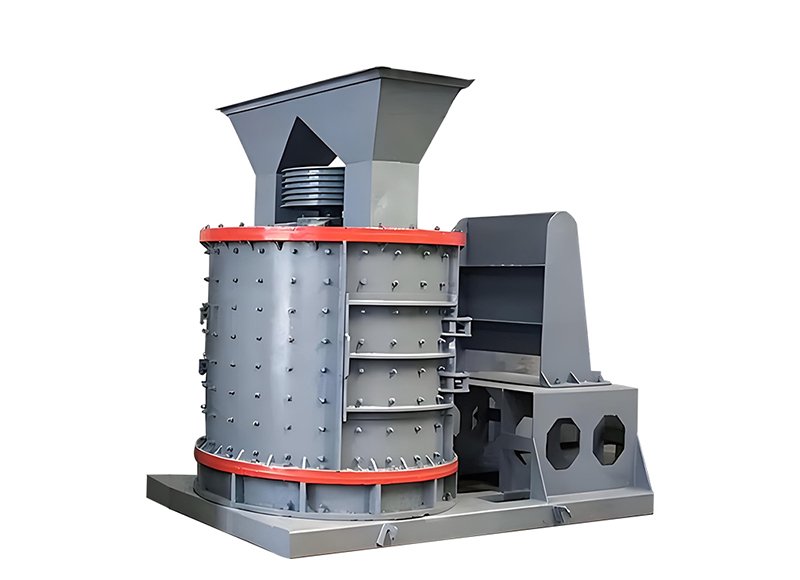

Compound Crusher For Sale
Compound crusher, also called vertical shaft sand making machine, is one of the commonly used equipments in crushing production line and sand making production line. This series of crusher is a new product optimized and designed on the basis of our PEL Vertical Compound Crusher, combined with domestic and foreign fine crushing technology.
- 【Feeding Size】: ≤100mm
- 【Motor Power】: 30 – 250kw
- 【Capacity】: 5-100T/H
- 【Crushing materials】: pebbles, construction waste, river pebbles, quartz sand, granite, basalt, iron ore, limestone, etc.
- 【Applications】: It is widely used in mining and metallurgy industry, building materials industry, cement industry, refractory and ceramics industry, chemical industry, infrastructure construction and other fields.
The performance of the composite crusher has reached a more advanced level, which is used for crushing all kinds of medium and hard ores, and is widely used in mining, metallurgy, refractory materials, cement, coal, glass, ceramics, electric power and other industries. Its compressive strength does not exceed 140MPa and humidity does not exceed 15%.
Type of Compound Crusher for Sale – Single Equipment
The main features of the composite crusher: large crushing ratio; high output; high efficiency and energy saving; wearing parts are made of high hardness, high toughness, multi-alloy wear-resistant materials, which increase the service life by 2-3 times, and the gap between the hammer head and the counterattack plate can be adjusted, which can satisfy the situation of various materials.
Vertical composite crusher is suitable for crushing all kinds of ores and can be used as two or three crushers. It is widely used in construction, metallurgy, building materials, water conservancy, electric power, refractory materials and other industrial sectors.
1.Crushing various rocks
2.Preferred for coal crushing
3.Fine powder materials
Specification | Processing Capacity (t/h) | Motor Power(kw) |
800 | 5-15 | 4P 30 |
1000 | 10-30 | 4P 55 |
1250 | 17-60 | 6P 132 |
1500 | 25-80 | 8P 160 |
1750 | 30-100 | 8P 200 |
2000 | 60-150 | 8P 250 |
Note: The output will vary depending on different materials, feed particle size and other factors.
The Compound Crusher can be customized according to production capacity, geography, climate and other factors, and the color can be customized according to customer requirements.
Features of Compound Crusher Machine
Low noise, less pollution: working noise is less than 75 decibels (db level), less dust pollution; the product is cubic, high packing density, less iron pollution.
High production efficiency and large processing capacity: with fine crushing and coarse grinding functions, it is suitable for crushing medium-hard and extra-hard materials.
Strong adaptability: the composite crusher is suitable for fine crushing of raw materials and clinker in cement plants, as well as a variety of medium-hardness materials, such as dolomite, jasper, lead-zinc ore, etc. It can also deal with materials with water content of up to 8% or so, and it is not easy to be clogged.
Smooth operation: the internal structure of the composite crusher is compact, and the parts are firmly fixed, so there will be no abnormal noise in the crushing process.
Long service life and low loss of wearing parts: the wearing parts adopt the new type of high strength wear-resistant materials in China at present, which can crush high hardness materials with low loss and long service life, and can bring considerable economic benefits for customers.

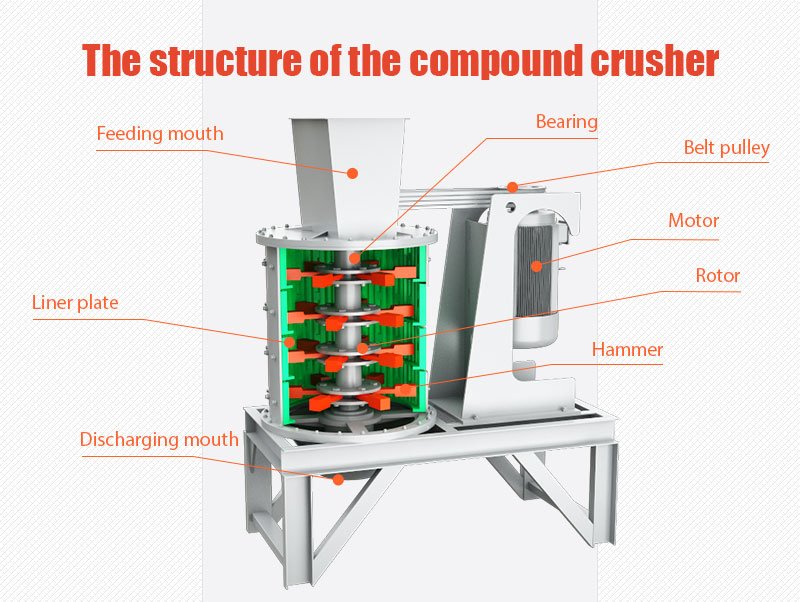

Working Principle of Compound Crusher
The material falls vertically into the crushing cavity of the compound crusher from the feeding hopper, and is struck by the high-speed rotating plate hammer or hammer head, and collides violently with the impact plate installed on the inner wall. After impacting the impact plate, the material is bounced back to the hammer plate and hit again. Such high-frequency cycle of strikes and counterattacks, so that the material is gradually crushed from large to small.
The smaller material falls to the lower crushing chamber, collides with the impact plate again, repeats the upper crushing process, and is crushed by blowing, impact, shear, extrusion, etc., until it is crushed into the required granularity and discharged from the discharge port.
Compound Crusher Application in Crushing Plants
Compound crusher is a kind of crushing equipment integrating crushing and sand making, which combines various crushing methods such as impact, extrusion and grinding, and is widely used in many fields. The following are the main fields where the composite crusher is applicable:
Mining industry: composite crusher is suitable for fine crushing operation of medium-hard and extra-hard materials, and can be used for crushing various ores such as iron ore, copper ore, gold ore and so on.
Building materials industry: composite crusher can be used for crushing and shaping limestone, shale, river pebbles, granite, etc. which are common raw materials for building materials to meet the demand of building aggregate or decorative use.
Cement industry: Compound crusher can be used for crushing cement raw material and clinker, which is a common equipment in cement production line.
Refractories and ceramics industry: Compound crusher can be used to crush refractories such as bauxite and magnesia, as well as ceramic raw materials such as quartz sand, etc., so that these materials can be sufficiently fine crushing and grinding.
Chemical industry: Compound crusher can also crush the raw materials used in chemical industry such as phosphate rock, the composite crusher’s large crushing ratio and even particle size help the chemical industry to fine processing of raw materials.
What Should You Consider When Choosing Compound Crusher?
If you are planning to buy a Compound Crusher, then you need to consider many factors in advance, such as capacity, feed size, discharge aggregate size, application, price, service, return and so on. Here I have listed a few important parts for your reference:
Feeding size
The first thing you should consider is the feed size. Customers should probably know the size of the material aggregate before crushing. Because customized Compound Crushermodels are mainly divided according to the feed size.
Capacity
Capacity should also be one of the factors to consider. If you plan to crush a large amount of aggregate in a short period of time, it is better to choose a large capacity crusher. If there is enough time, a smaller size crusher may be more cost effective.
Price
Compound Crusher cost is the most important aspect for customers to consider. It is very important for customers to choose a Compound Crusher with the best price and within their budget. Chunlei offers different models of crushers with different prices. Please contact us and get the latest Compound Crusher price.
Service
For mining machinery industry, choosing a reliable and serviceable Compound Crusher manufacturer is very important for customers. Crushing production line is a complete set of solutions customized for customers. Therefore, it needs constant communication, follow-up and feedback. The best service can help customers save a lot of maintenance after-sales service costs.
For the mining industry, especially for large-scale mining machinery, it is especially important for customers to choose a reliable and well-served Compound Crusher manufacturer. The crushing line is a complete solution customized for the customer. Therefore, both parties need constant communication, follow-up and feedback. Meticulous service can help customers save a lot of maintenance and after-sale costs.
What Can ChunLei Do for You About Compound Crusher Service?
- Pre-sales service: 1.Assist customers to prepare the first construction plan; 2. Provide route guidance, reception at any time, and visit our factory at any time.
- On-sale service: 1. Provide example guidance at any time by phone or email; 2. Install, debug and inspect the equipment, and provide technical support through video.
- After-sales service: 1. Provide spare parts at the best price for a long time; 2. We provide 1 year warranty and technical support to ensure the smooth operation of the machine.
You may also want to know about ChunLei-FAQ
1. Are you a factory or a trading company?
We are factory, and in 2008 officially registered ChunLei Machinery.
2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
3.How about price?
We are factory and can give you lower price than the market, and we have a policy “In order to save time and absolutely honest business attitude, we provide the lowest possible quotation for any customer, and can give discounts as needed to the quantity” .
4. How long is the warranty?
Does your company supply the spare parts? One year. Spare parts for you at lowest cost.
5. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
6. What is your payment method?
We usually accept T/T, L/C、Western Union payments；
7. If I need a complete mining rig, can you help us build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
