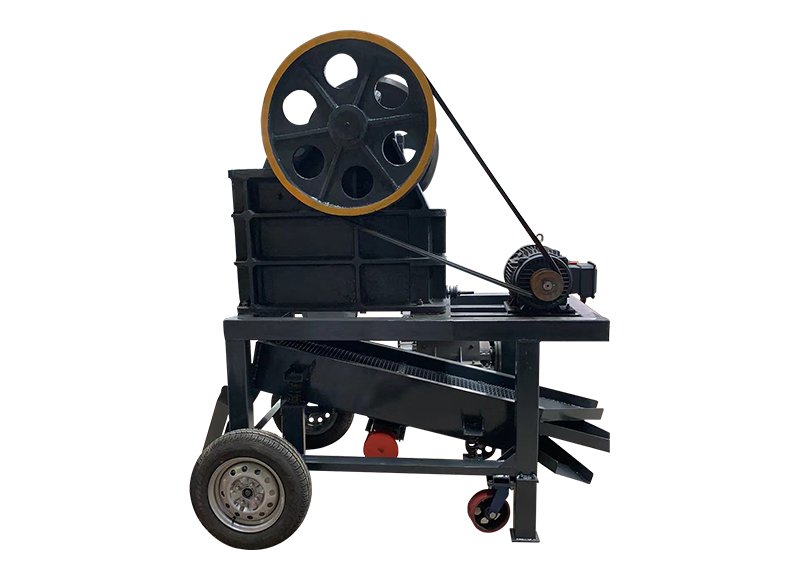

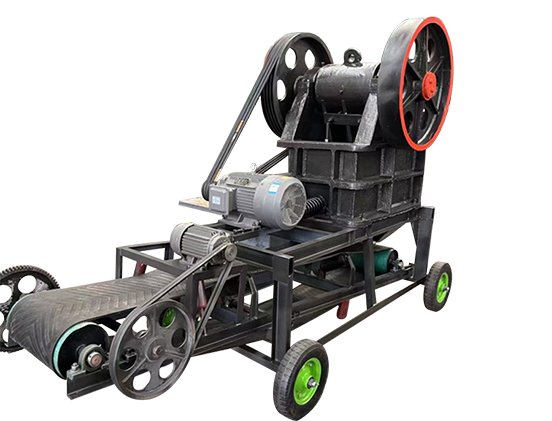

Mobile Small Screening Crusher For Sale
A small mobile crusher is a piece of equipment that can crush materials on-site and is commonly used in construction, mining, recycling and other engineering applications. It is designed to be mobile and can be easily moved to different workplaces for crushing operations.

- 【Feeding Size】: ≤ 850mm
- 【Output Size】: ≤265mm
- 【Capacity】: 3–500T/H
- 【Crushing materials】: Stone, granite, trap rock, coke, coal, manganese ore, iron ore, adamantine, molten aluminum, oxides, fused calcium, limestone, quartzite, alloys, etc.
- 【Applications】:It is widely used in various industries such as mining, metallurgy, civil engineering, highway and railroad construction, building construction, water conservancy and chemical industry, recycling, etc.
Relevant Parameters of Mobile small screening crusher for Sale
A small mobile crusher is a flexible and efficient piece of equipment specifically designed for on-site crushing operations. It employs advanced crushing technology and can quickly process materials of various hardnesses for a wide range of use cases, such as construction waste, ores and waste recycling. Its wheels or tracking boxes allow the equipment to be easily transported between different work sites, saving transportation costs and improving productivity. In addition, the equipment integrates crushing, screening and conveying functions, is easy to operate and meets environmental standards, making it an ideal choice for the modern construction and mining industries.
Model | Maximum feed size | Discharge caliber | Capacity | Power | Weight | Dimension |
PE150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.7 | 1000*870*990 |
PE200X300 | 200×300 | 180 | 15-50 | 5.5 | 1.5 | 910*750*990 |
PE200X350 | 200×350 | 180 | 18-70 | 7.5 | 2.1 | 1000*870*990 |
PE250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
PE400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
PE400*900 | 340 | 40-100 | 40-110 | 55 | 7.5 | 1905*2030*1658 |
PE500×750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
PE600*900 | 500 | 65-160 | 50-180 | 75 | 17 | 2190*2206*2300 |
PE750*1060 | 630 | 80-140 | 110-320 | 90 | 31 | 2660*2430*2800 |
PE900*1200 | 750 | 95-165 | 220-450 | 160 | 52 | 3380*2870*3330 |
PE1000*1200 | 850 | 195-265 | 315-500 | 160 | 55 | 3480*2876*3330 |
PEX150*750 | 120 | 18-48 | 8-25 | 15 | 3.8 | 1200*1530*1060 |
PEX250*750 | 210 | 15-60 | 13-35 | 30 | 6.5 | 1380*1750*1540 |
PEX250*1000 | 210 | 15-60 | 16-52 | 37 | 7 | 1560*1950*1390 |
PEX250*1200 | 210 | 15-60 | 20-61 | 45 | 9.7 | 2140*2096*1500 |
Note: The output will vary depending on different materials, feed particle size and other factors.

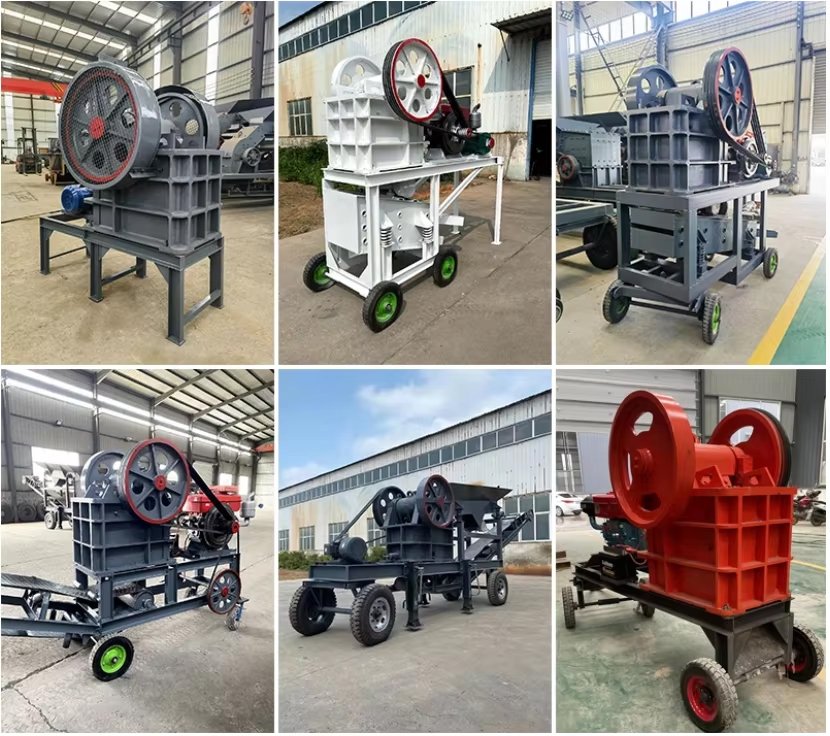

The Mobile small screening crusher can be customized according to production capacity, geography, climate and other factors, and the color can be customized according to customer requirements.
Features of Mobile small screening crusher Machine


Safe and reliable lubrication system, easy parts replacement, low maintenance workload.
Deep crushing cavity, no dead zone, increase feeding capacity and output.
Large crushing ratio, uniform product size.
Small adjustment range of the pad-type casing stock adjustment device increases the flexibility of the equipment.
Simple and reliable structure, low running cost.
Jaw crusher discharge size can be adjusted to meet the requirements of different users.
Low noise and less dust.
Movable and easy to use.
Working Principle of Mobile small screening crusher

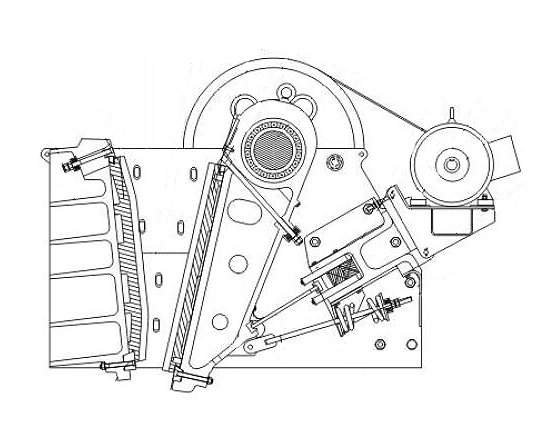

Jaw crusher works on the principle of crushing materials by the relative motion between two jaw plates (movable jaw and static jaw), i.e. movable jaw and static jaw, which mimic the movement of animal jaws to accomplish the material crushing operation. They mimic the movement of an animal’s lower jaw to accomplish the material crushing operation. The moving jaw reciprocates relative to the static jaw, and the material fed from the top chamber is compressed between the two jaw plates and crushed into small pieces. When the movable jaw plate leaves the static jaw plate, the crushed material is discharged from the discharge opening under the action of gravity. This working principle enables the jaw crusher to complete the crushing operation efficiently.


Mobile small screening crusher Application in Crushing Plants
Mobile small screening crusher is widely used in the following fields:
Construction Waste Disposal: Small portable crusher with screen can crush and recycle concrete blocks and bricks through crushing and screening, and convert construction waste into recycled sand and gravel aggregate to reduce environmental pollution.
Road project: small portable crusher with screen can process excavated stone material on site and use it as filler for road foundation. Its portability and flexibility make the construction efficiency significantly improved.
Mining: The small mobile crusher with screen can crush the ore in the gravel quarry with complicated terrain, and the screening function helps to classify the ore into products with different particle sizes and improve the utilization rate of the ore.
Sand and gravel aggregate production: small mobile crusher with screen can produce high quality sand and gravel aggregate through crushing and screening, providing high quality raw materials for the construction industry.
Metallurgy, chemical industry, building materials, hydropower and other industries: the portability and flexibility of the small portable crusher with screen can easily adapt to different working environments and site sizes to meet the material processing needs of relocation operations.


What Should You Consider When Choosing Mobile small screening crusher?
If you are planning to buy a Mobile small screening crusher, then you need to consider many factors in advance, such as capacity, feed size, discharge aggregate size, application, price, service, return and so on. Here I have listed a few important parts for your reference:
Feeding size
The first thing you should consider is the feed size. Customers should probably know the size of the material aggregate before crushing. Because customized Mobile small screening crusher models are mainly divided according to the feed size.
Capacity
Capacity should also be one of the factors to consider. If you plan to crush a large amount of aggregate in a short period of time, it is better to choose a large capacity crusher. If there is enough time, a smaller size crusher may be more cost effective.
Price
Mobile small screening crusher cost is the most important aspect for customers to consider. It is very important for customers to choose a Mobile small screening crusher with the best price and within their budget. Chunlei offers different models of crushers with different prices. Please contact us and get the latest Mobile small screening crusher price.
Service
For mining machinery industry, choosing a reliable and serviceable Mobile small screening crusher manufacturer is very important for customers. Crushing production line is a complete set of solutions customized for customers. Therefore, it needs constant communication, follow-up and feedback. The best service can help customers save a lot of maintenance after-sales service costs.
For the mining industry, especially for large-scale mining machinery, it is especially important for customers to choose a reliable and well-served Mobile small screening crusher manufacturer. The crushing line is a complete solution customized for the customer. Therefore, both parties need constant communication, follow-up and feedback. Meticulous service can help customers save a lot of maintenance and after-sale costs.
What Can ChunLei Do for You About Mobile small screening crusher Service?

- Pre-sales service: 1.Assist customers to prepare the first construction plan; 2. Provide route guidance, reception at any time, and visit our factory at any time.
- On-sale service: 1. Provide example guidance at any time by phone or email; 2. Install, debug and inspect the equipment, and provide technical support through video.
- After-sales service: 1. Provide spare parts at the best price for a long time; 2. We provide 1 year warranty and technical support to ensure the smooth operation of the machine.
You may also want to know about ChunLei-FAQ
1. Are you a factory or a trading company?
We are factory, and in 2008 officially registered ChunLei Machinery.
2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
3.How about price?
We are factory and can give you lower price than the market, and we have a policy “In order to save time and absolutely honest business attitude, we provide the lowest possible quotation for any customer, and can give discounts as needed to the quantity” .
4. How long is the warranty?
Does your company supply the spare parts? One year. Spare parts for you at lowest cost.
5. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
6. What is your payment method?
We usually accept T/T, L/C、Western Union payments;
7. If I need a complete mining rig, can you help us build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
