PCX Shaping Crusher For Sale

PCX Shaping Crusher is called Hammer type plastic crusher, is a crushing and shaping machine, through the adjustable movable liner and material self-flowing chute design, it can realize impact crushing, impact shaping and self-flowing material, change two-stage crushing into one-stage crushing, and be used as two-stage crushing and shaping machine in large-scale production line.

PCX-Shaping-Crusher

PCX series is a crushing and shaping machine, through the adjustable movable liner and material self-flowing chute design, it can realize impact crushing, impact shaping and self-flowing material, change two-stage crushing into one-stage crushing, and be used as two-stage crushing and shaping machine in large-scale production line.

PF impact crusher adopts optimized manufacturing technology, clever use of the mechanical characteristics of the crushing process, for the compressive strength of more than 50MPa stone and designed for the crusher.

Type of PCX Shaping Crusher for Sale – Single Equipment

The whole form rock crusher is mainly composed of frame, rotor, hammer head, spindle, strike plate, liner plate and other components.

Compared with the heavy crusher, the whole form crusher has a larger caliber and mainly crushes small and soft stones, which are generally used for secondary crushing.

All general-purpose hammer rock crushers utilize three main crushing methods: impact, shear and friction. As material enters the mill from the vertical chute, it comes into contact with the leading edges of the hammers, each of which is securely fastened to the rotating rotor. The hammers are fixed to the rotor body and are allowed to swing and tilt back a certain amount. Centrifugal force keeps the hammers extended and releases inertial forces on the material to break rock on impact. The particles bounce off the impact plate or crushing block and return to the hammer ring. Immediately, the material is brought into the grate or cage assembly where shear reduces the larger particles and carries them across the grate surface, grinding the particles into a controlled gradation. Once the particles are reduced to the proper size, openings in the grate and cage assembly allow the particles to escape from the mill.

PCZ-Heavy-Hammer-Crusher-structure

Model

Rotor Diameter × Length (mm)

Feed Port (Length × Width) (mm)

Optimum Feed Particle Size (mm)

Processing Capacity (t/h)

Motor Power (kw)

Overall Dimensions (Length × Width × Height) (mm)

PCX 0706

700×570

618×510

≤400

50-70

75

1950×1340×1480

PCX 0808

800×750

750×610

≤500

80-100

132

2280×1790×1670

PCX 0910

900×1000

1070×750

≤600

150-200

2×110

2600×2200×1940

PCX 1012

1000×1180

1255×810

≤650

250-300

2×132

2800×2310×2210

PCX 1213

1200×1280

1350×920

≤750

300-350

2×160

2970×2580×2510

PCX 1216

1200×1590

1630×1010

≤750

400-500

2×200

3070×2840×2580

PCX 1220

1260×1950

2000×1010

≤750

500-600

2×220

3080×3380×2580



Note: The output will vary depending on different materials, feed particle size and other factors.

The PCX Shaping Crusher can be customized according to production capacity, geography, climate and other factors, and the color can be customized according to customer requirements.

Features of PCX Shaping Crusher Machine

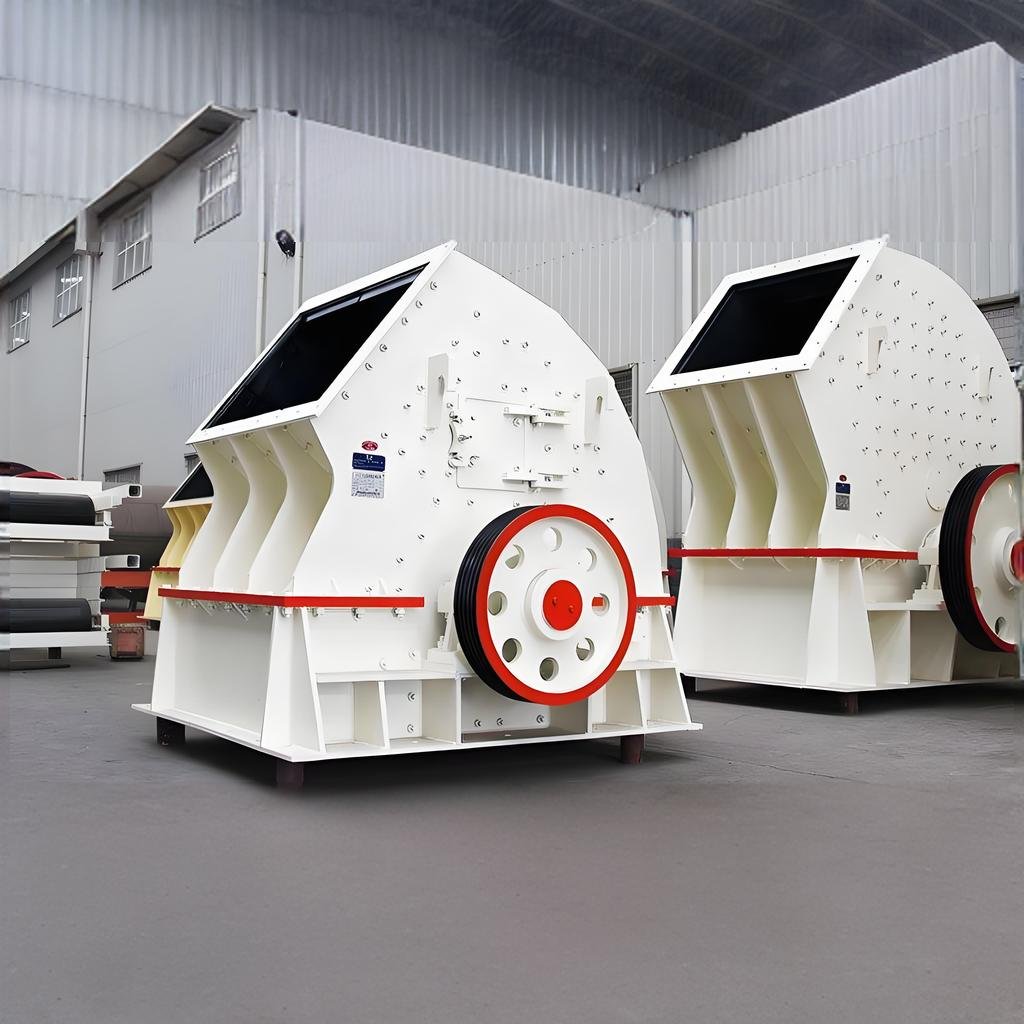

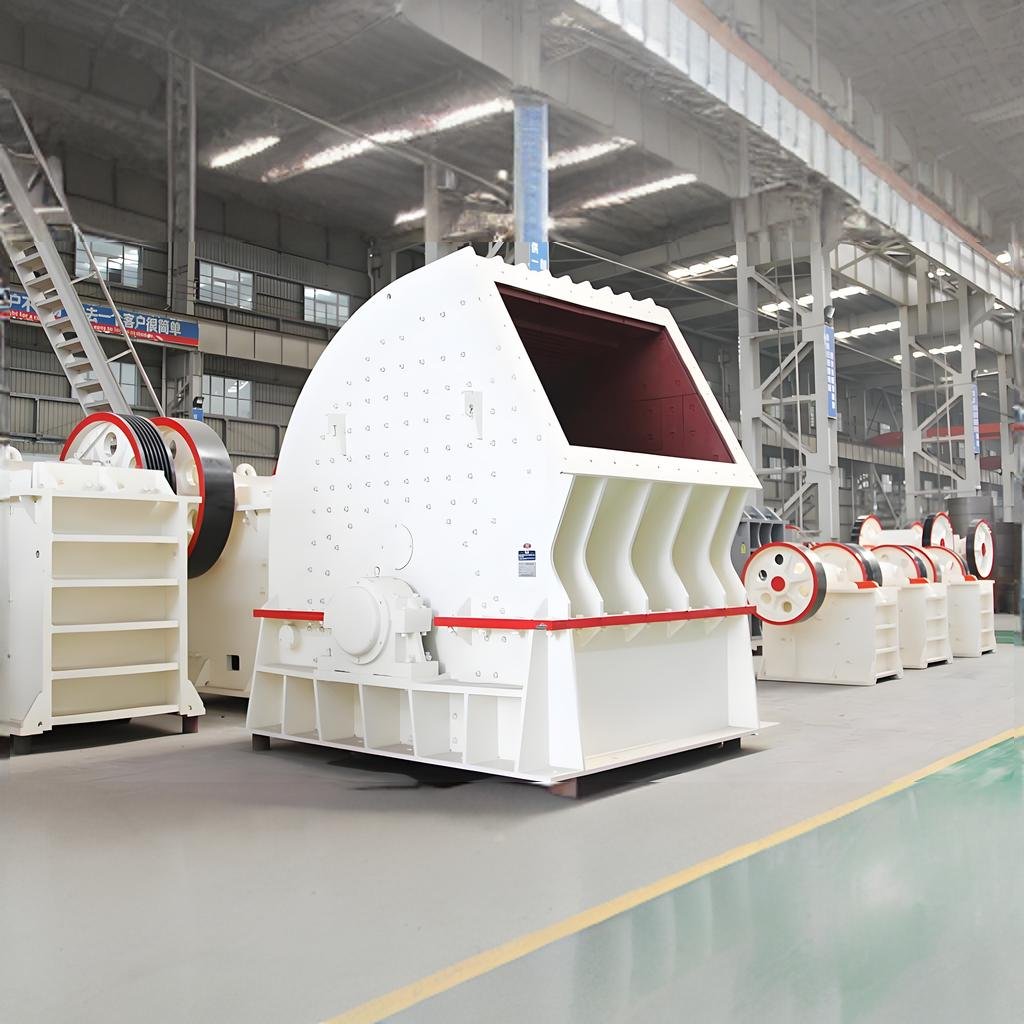

PCX-Shaping-Crusher
PCX-Shaping-Crusher
  • Reduce costs, low energy consumption: a molding, eliminating the second crushing and shaping process, can reduce costs by about 40%, low energy consumption, low investment.

  • Wide use of stone: especially suitable for crushing limestone and medium-hard stone with compressive strength below 200Mpa.

  • High degree of automation: it adopts external oil pump, oil tank and pipeline lubrication system, when the oil temperature is too high or the oil flow is too slow, the machine will stop automatically.

  • Multi-purpose and high profit: modular design, conversion between coarse, medium and fine crushing can be realized by changing the cavity type, which improves the production efficiency.

Working Principle of PCX Shaping Crusher

The main working part of the hammer crusher is the rotor with hammers (also known as hammerheads). The rotor of the hammer crusher consists of the main shaft, disk, pin and hammer. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feeding port and crushed by the striking, impacting, shearing and grinding action of the high-speed hammer. In the lower part of the rotor, there is a sieve plate, the crushed material is smaller than the size of the screen hole through the sieve plate discharged, larger than the size of the screen hole of the coarse particles remain in the sieve plate to continue to be subjected to the hammer blow and grinding, and finally through the sieve plate discharged out of the machine.

PCZ-Heavy-Hammer-Crusher-structure
PCZ-Heavy-Hammer-Crusher-working-principle

PCX Shaping Crusher Application in Crushing Plants

PCX Shaping Crusher is widely used in the following fields:

Mining industry: it is suitable for crushing all kinds of medium hardness and brittle materials such as limestone, coal, and so on.

Building materials industry: it can be used to crush limestone, gypsum and other raw materials to meet the demand of building materials production.

Highway and railroad construction: the crushed stone materials provide the required aggregates for the infrastructure construction of highway and railroad.

Water conservancy project: the stones in the river can be crushed to provide the required materials for water conservancy project.

Chemical industry: it is suitable for crushing chemical raw materials such as salt, chalk, gypsum and so on.

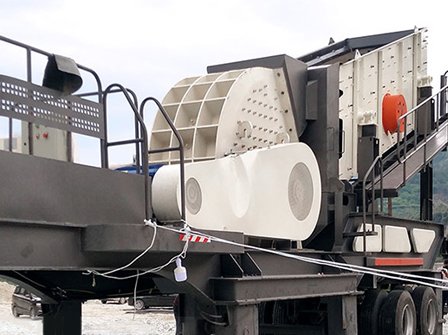

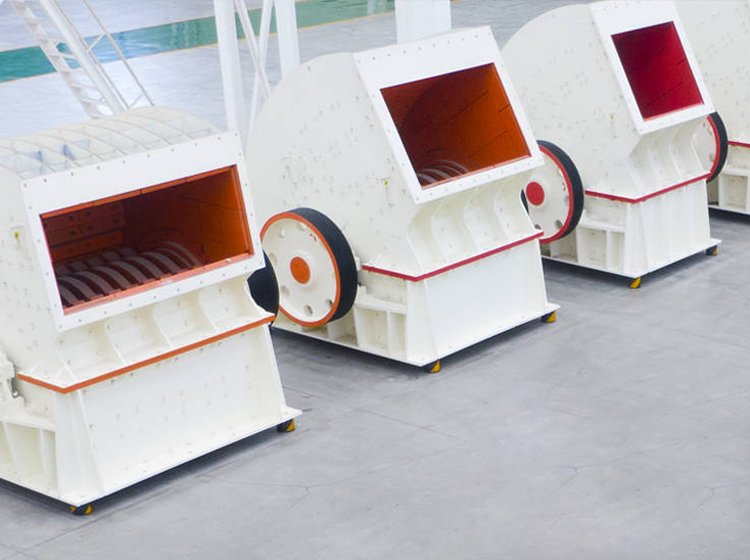

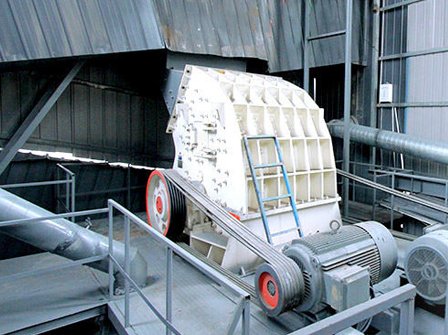

PCX-Shaping-Crusher-site
PCX-Shaping-Crusher-site
PCX-Shaping-Crusher-site

What Should You Consider When Choosing PCX Shaping Crusher?

If you are planning to buy a PCX Shaping Crusher, then you need to consider many factors in advance, such as capacity, feed size, discharge aggregate size, application, price, service, return and so on. Here I have listed a few important parts for your reference:

Feeding size

The first thing you should consider is the feed size. Customers should probably know the size of the material aggregate before crushing. Because customized PCX Shaping Crusher models are mainly divided according to the feed size.

Capacity should also be one of the factors to consider. If you plan to crush a large amount of aggregate in a short period of time, it is better to choose a large capacity crusher. If there is enough time, a smaller size crusher may be more cost effective.

PCX Shaping Crusher cost is the most important aspect for customers to consider. It is very important for customers to choose a PCX Shaping Crusher with the best price and within their budget. Chunlei offers different models of crushers with different prices. Please contact us and get the latest PCX Shaping Crusher price.

For mining machinery industry, choosing a reliable and serviceable PCX Shaping Crusher manufacturer is very important for customers. Crushing production line is a complete set of solutions customized for customers. Therefore, it needs constant communication, follow-up and feedback. The best service can help customers save a lot of maintenance after-sales service costs.

For the mining industry, especially for large-scale mining machinery, it is especially important for customers to choose a reliable and well-served PCX Shaping Crusher manufacturer. The crushing line is a complete solution customized for the customer. Therefore, both parties need constant communication, follow-up and feedback. Meticulous service can help customers save a lot of maintenance and after-sale costs.

What Can ChunLei Do for You About PCX Shaping Crusher Service?

our-advantages
  • Pre-sales service: 1.Assist customers to prepare the first construction plan; 2. Provide route guidance, reception at any time, and visit our factory at any time.
  • On-sale service: 1. Provide example guidance at any time by phone or email; 2. Install, debug and inspect the equipment, and provide technical support through video.
  • After-sales service: 1. Provide spare parts at the best price for a long time; 2. We provide 1 year warranty and technical support to ensure the smooth operation of the machine.

You may also want to know about ChunLei-FAQ

1. Are you a factory or a trading company?
We are factory, and in 2008 officially registered ChunLei Machinery.

2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.

3.How about price?
We are factory and can give you lower price than the market, and we have a policy “In order to save time and absolutely honest business attitude, we provide the lowest possible quotation for any customer, and can give discounts as needed to the quantity” .

4. How long is the warranty?
Does your company supply the spare parts? One year. Spare parts for you at lowest cost.

5. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.

6. What is your payment method?
We usually accept T/T, L/C、Western Union payments;

7. If I need a complete mining rig, can you help us build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
