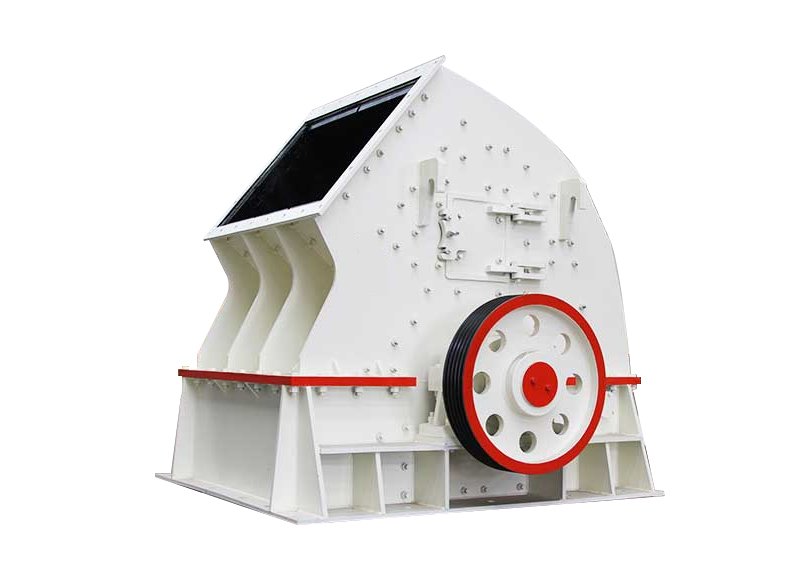

PCZ Heavy Hammer Crusher For Sale
PCZ hammer crusher is the equipment designed by Chunlei Mining Machinery with advanced technology, which has large output, high efficiency and small power, and it can realize one-time processing and shaping of stone materials, and it becomes a new model to complete crushing of large and small materials at one time, which saves manpower and material resources, and reduces the cost of crushing materials.

- 【Feeding Size】: ≤ 1500mm
- 【Motor Power】: ≤1250kw
- 【Capacity】: 250 –2000T/H
- 【Crushing materials】: Limestone, slag, coke, coal, chalk, gypsum, alum, iron ore, non-ferrous metal ores, granite, limestone, quartzite, cobblestone, etc.
- 【Applications】: PCZ Heavy Hammer Crusher is widely used in mining, smelting, building materials, highway, railroad, water conservancy, chemical industry and many other industries.
The stone crushed by PCZ hammer crusher not only has full specifications, but also is even and clear, which is a substitute for the old jaw crusher and plate hammer crusher. It is widely used in mining, smelting, building materials, highway, railroad, water conservancy, chemical industry and many other industries. It is suitable for crushing all kinds of medium hardness and brittle materials with compressive strength below 150Mpa, such as limestone, lapis lazuli, coal gangue and so on.
Type of PCZ Heavy Hammer Crusher for Sale – Single Equipment
Hammer rock crusher is mainly composed of frame, rotor, hammer head, spindle, striking plate, liner plate and other components
Compared with other hammer crusher, the heavy hammer crusher is characterized by large diameter, heavy hammer head, high striking linear velocity, etc. The hammer head can be rotated 360°, which increases the elasticity of the hammer head and makes the hammer shank of the hammer head not easy to break when encountering the impact of large lumps of materials or materials with slightly higher hardness, which greatly increases the service life of the hammer head. In production practice, it presents significant advantages such as large particle size, high crushing ratio and low maintenance cost.

Model | Rotor Diameter × Length (mm) | Feed Port (Length × Width) (mm) | Optimum Feed Particle Size (mm) | Processing Capacity (t/h) | Motor Power (kw) | Overall Dimensions (Length × Width × Height) (mm) |
PCZ1308 | Φ1330×790 | 870×780 | ≤600 | 100-160 | 132 | 2880×2100×2390 |
PCZ1310 | Φ1330×1050 | 890×1075 | ≤650 | 150-180 | 160 | 2950×2250×2390 |
PCZ1510 | Φ1500×950 | 1000×900 | ≤700 | 160-210 | 2×132 | 3260×2414×2750 |
PCZ1512 | Φ1500×1160 | 1200×900 | ≤750 | 250-320 | 2×160 | 3260×2624×2750 |
PCZ1615 | Φ1600×1452 | 1500×1200 | ≤1000 | 420-500 | 2×200 | 3667×2937×3436 |
PCZ1620 | Φ1660×1900 | 2000×1200 | ≤1200 | 800-1000 | 2×400 | 3667×3200×3436 |
PCZ1820 | Φ1800×1964 | 2000×1200 | ≤1200 | 1000-1200 | 2×450 | 3700×3270×3515 |
PCZ2125 | Φ2100×2485 | 2530×1560 | ≤1500 | 1800-3000 | 1250 | 4455×4565×4670 |
Note: The output will vary depending on different materials, feed particle size and other factors.
The PCZ Heavy Hammer Crusher can be customized according to production capacity, geography, climate and other factors, and the color can be customized according to customer requirements.
Features of PCZ Heavy Hammer Crusher Machine


No grid design, adjustable discharge size: can crush wet materials, not affected by rain. Solve the traditional hammer crushing easy to clog, easy to jam the machine, low yield and other problems.
Self-flowing slot design to avoid repeated crushing and reduce powder output: Self-flowing design, the middle of the molding slot leaves a gap, materials smaller than the gap can flow out directly and naturally to avoid crushing again. This improves the production capacity, while greatly reducing the powder production rate.
Hydraulic Displacement Adjustment Device: The large machine is equipped with a hydraulic adjustment device, which makes the adjustment more convenient and labor-saving.
Hydraulic Hammer Shaft Device: The large machine is equipped with a hydraulic hammer shaft pumping device, which makes it easy to replace the hammer head and hammer shaft and saves labor.
Working Principle of PCZ Heavy Hammer Crusher
Hammer mill is mainly rely on the impact of the role of crushing materials, when the material into the crusher, suffered a high-speed rotary hammer impact and crushing; crushed material, again high-speed rushed to the frame within the baffle, sieve, and at the same time the materials hit each other, were crushed many times. The material which meets the granularity is discharged from the gap, and the larger material is crushed again on the screen bar by the impact of the hammer head, grinding and squeezing until it is crushed into the granularity size which meets the demand.

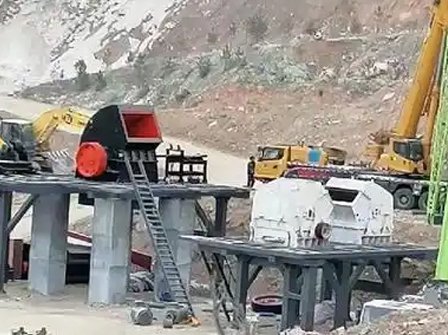

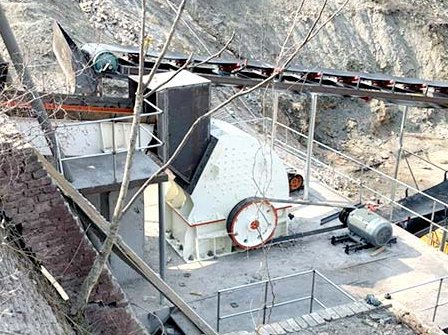

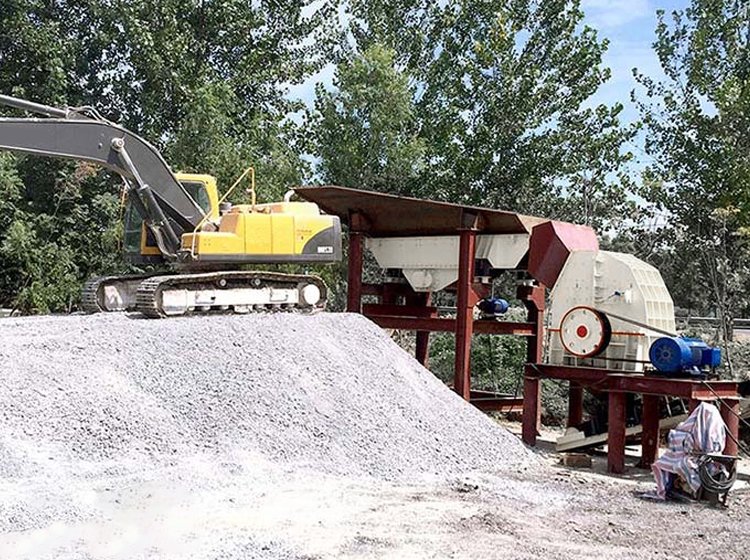

PCZ Heavy Hammer Crusher Application in Crushing Plants
PCZ Heavy Hammer Crusher is widely used in the following fields:
Mining industry: it is suitable for crushing all kinds of medium hardness and brittle materials such as limestone, coal, and so on.
Building materials industry: it can be used to crush limestone, gypsum and other raw materials to meet the demand of building materials production.
Highway and railroad construction: the crushed stone materials provide the required aggregates for the infrastructure construction of highway and railroad.
Water conservancy project: the stones in the river can be crushed to provide the required materials for water conservancy project.
Chemical industry: it is suitable for crushing chemical raw materials such as salt, chalk, gypsum and so on.



What Should You Consider When Choosing PCZ Heavy Hammer Crusher?
If you are planning to buy a PCZ Heavy Hammer Crusher, then you need to consider many factors in advance, such as capacity, feed size, discharge aggregate size, application, price, service, return and so on. Here I have listed a few important parts for your reference:
Feeding size
The first thing you should consider is the feed size. Customers should probably know the size of the material aggregate before crushing. Because customized PCZ Heavy Hammer Crusher models are mainly divided according to the feed size.
Capacity
Capacity should also be one of the factors to consider. If you plan to crush a large amount of aggregate in a short period of time, it is better to choose a large capacity crusher. If there is enough time, a smaller size crusher may be more cost effective.
Price
PCZ Heavy Hammer Crusher cost is the most important aspect for customers to consider. It is very important for customers to choose a PCZ Heavy Hammer Crusher with the best price and within their budget. Chunlei offers different models of crushers with different prices. Please contact us and get the latest PCZ Heavy Hammer Crusher price.
Service
For mining machinery industry, choosing a reliable and serviceable PCZ Heavy Hammer Crusher manufacturer is very important for customers. Crushing production line is a complete set of solutions customized for customers. Therefore, it needs constant communication, follow-up and feedback. The best service can help customers save a lot of maintenance after-sales service costs.
For the mining industry, especially for large-scale mining machinery, it is especially important for customers to choose a reliable and well-served PCZ Heavy Hammer Crusher manufacturer. The crushing line is a complete solution customized for the customer. Therefore, both parties need constant communication, follow-up and feedback. Meticulous service can help customers save a lot of maintenance and after-sale costs.
What Can ChunLei Do for You About PCZ Heavy Hammer Crusher Service?

- Pre-sales service: 1.Assist customers to prepare the first construction plan; 2. Provide route guidance, reception at any time, and visit our factory at any time.
- On-sale service: 1. Provide example guidance at any time by phone or email; 2. Install, debug and inspect the equipment, and provide technical support through video.
- After-sales service: 1. Provide spare parts at the best price for a long time; 2. We provide 1 year warranty and technical support to ensure the smooth operation of the machine.
You may also want to know about ChunLei-FAQ
1. Are you a factory or a trading company?
We are factory, and in 2008 officially registered ChunLei Machinery.
2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
3.How about price?
We are factory and can give you lower price than the market, and we have a policy “In order to save time and absolutely honest business attitude, we provide the lowest possible quotation for any customer, and can give discounts as needed to the quantity” .
4. How long is the warranty?
Does your company supply the spare parts? One year. Spare parts for you at lowest cost.
5. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
6. What is your payment method?
We usually accept T/T, L/C、Western Union payments;
7. If I need a complete mining rig, can you help us build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
