Small Hammer Crusher For Sale
Hammer crusher is a kind of equipment that crushes materials in the form of impact, which is divided into two forms: single rotor and double rotor. It is a segmented crusher that crushes materials with maximum size of 600-1800mm directly to 25 or less than 25mm.

- 【Feeding Size】: ≤ 120mm
- 【Output Size】: ≤15mm
- 【Capacity】: 5 –80T/H
- 【Applications】: It is suitable for fine crushing of medium hardness and brittle materials in mining, cement, coal, metallurgy, building materials, highway, combustion chemical and other departments.
Small hammer crusher has no clogging and less downtime; large crushing ratio and even product; compact and rational structure and green environmental protection.
Type of Small Hammer Crusher for Sale – Single Equipment

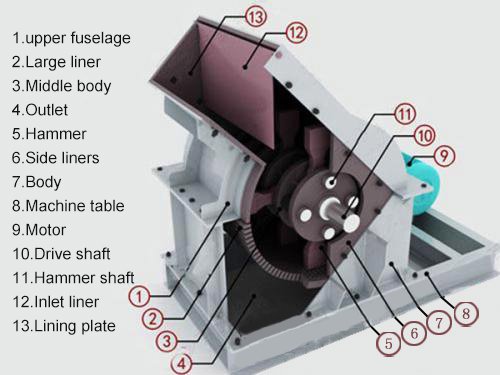

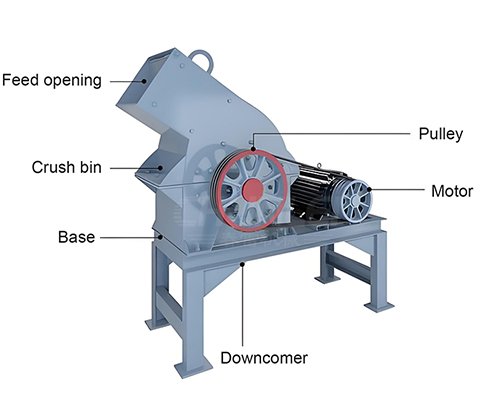

Small hammer crusher is mainly composed of box, rotor, hammer head, impact liner and screen plate, etc. It is a kind of impact crushing equipment which utilizes high-speed rotating hammer head to crush materials.
Small hammer crusher applicable materials: suitable for compressive strength of not more than 150 MPa, moisture content of less than 15% of the material. For example: limestone, coal, salt, chalk, gypsum, shale, masonry and so on. It is also used for crushing broken wood with strong fiber structure, elasticity and toughness, paper or crushing asbestos cement waste to recover asbestos fibers.

Model | Max feed size (mm) | Output Size (mm) | Production capacities (t/h) | Motor power (kw) | Weight (t) |
PC400*300 | 100 | ≤10 | 5-10 | 11 | 0.8 |
PC600*400 | 120 | ≤15 | 10-25 | 18.5 | 1.5 |
PC800*600 | 120 | ≤15 | 20-35 | 55 | 3.1 |
PC1000*800 | 120 | ≤15 | 20-40 | 110 | 7.9 |
PC1000*1000 | 120 | ≤15 | 30-80 | 132 | 8.65 |
Note: The output will vary depending on different materials, feed particle size and other factors.
The Small Hammer Crusher can be customized according to production capacity, geography, climate and other factors, and the color can be customized according to customer requirements.
Features of Small Hammer Crusher Machine


Simple and compact structure: the overall design is beautifully shaped, and the hammer body is dismissed and sealed, which solves the problems of dust pollution in the crushing workshop and ash leakage from the body.
Large crushing ratio, high production efficiency: simplified process, one feeding, no need for primary and secondary crushing, high output, reliable performance, large capacity.
Wear-resistant, impact-resistant, energy-saving and environment-friendly: the working hammer head, cast with new technology, is wear-resistant and impact-resistant, with fewer wearing parts and easy maintenance.
Stable operation, good crushing effect: beautiful design, compact structure, long time normal operation, and crushing ratio is large, the product size is uniform.
Working Principle of Small Hammer Crusher
The main working part of the hammer crusher is the rotor with hammers (also known as hammer heads). The motor drives the rotor to rotate at high speed in the crushing chamber. The material enters the machine from the inlet and is crushed by the striking, impacting, shearing and grinding of the high-speed hammers. The crushed material will hit the impact liner and be crushed again. In the lower part of the rotor, there is a sieve plate, the crushed material is smaller than the size of the screen hole through the sieve plate discharged, larger than the size of the screen hole of coarse particles to remain in the sieve plate to continue to be subjected to hammer blows and grinding, through the sieve plate discharged out of the machine.


Small Hammer Crusher Application in Crushing Plants
Small Hammer Crusher is widely used in the following fields:
Mining field: small hammer crusher can be used for preliminary crushing of various ores in small-scale mining operations. Small hammer crusher can also be used to crush the tailings that will be left behind in the mines after mining for secondary beneficiation, to improve the comprehensive utilization rate of mineral resources.
Construction industry: Small hammer crusher plays an important role in the production of sand and gravel aggregate for construction. It can crush various kinds of stone materials such as limestone, granite, basalt, etc. into aggregates of different specifications. It can also crush construction waste into recycled aggregate for the production of recycled concrete, recycled bricks and other building materials.
Chemical industry: Small hammer crusher can crush the raw materials in block or granular form in chemical production, so as to make them reach the appropriate particle size and meet the reaction requirements in the chemical production process.
Energy field: small hammer crusher can crush the large pieces of raw coal into small pieces. Meanwhile, for the solid waste associated with coal such as gangue, small hammer crusher can also be crushed for comprehensive utilization, such as for the production of building materials, paving materials and so on.
Ceramics and refractory industry: small hammer crusher can crush ceramic raw materials such as kaolin, feldspar, quartz and refractory raw materials such as bauxite and magnesium sand, so as to improve the quality of ceramic products; in the production of refractory materials, the appropriate size of the raw materials can improve the refractory properties and strength of refractory materials.



What Should You Consider When Choosing Small Hammer Crusher?
If you are planning to buy a Small Hammer Crusher, then you need to consider many factors in advance, such as capacity, feed size, discharge aggregate size, application, price, service, return and so on. Here I have listed a few important parts for your reference:
Feeding size
The first thing you should consider is the feed size. Customers should probably know the size of the material aggregate before crushing. Because customized Small Hammer Crusher models are mainly divided according to the feed size.
Capacity
Capacity should also be one of the factors to consider. If you plan to crush a large amount of aggregate in a short period of time, it is better to choose a large capacity crusher. If there is enough time, a smaller size crusher may be more cost effective.
Price
Small Hammer Crusher cost is the most important aspect for customers to consider. It is very important for customers to choose a Small Hammer Crusher with the best price and within their budget. Chunlei offers different models of crushers with different prices. Please contact us and get the latest Small Hammer Crusher price.
Service
For mining machinery industry, choosing a reliable and serviceable Small Hammer Crusher manufacturer is very important for customers. Crushing production line is a complete set of solutions customized for customers. Therefore, it needs constant communication, follow-up and feedback. The best service can help customers save a lot of maintenance after-sales service costs.
For the mining industry, especially for large-scale mining machinery, it is especially important for customers to choose a reliable and well-served Small Hammer Crusher manufacturer. The crushing line is a complete solution customized for the customer. Therefore, both parties need constant communication, follow-up and feedback. Meticulous service can help customers save a lot of maintenance and after-sale costs.
What Can ChunLei Do for You About Small Hammer Crusher Service?

- Pre-sales service: 1.Assist customers to prepare the first construction plan; 2. Provide route guidance, reception at any time, and visit our factory at any time.
- On-sale service: 1. Provide example guidance at any time by phone or email; 2. Install, debug and inspect the equipment, and provide technical support through video.
- After-sales service: 1. Provide spare parts at the best price for a long time; 2. We provide 1 year warranty and technical support to ensure the smooth operation of the machine.
You may also want to know about ChunLei-FAQ
1. Are you a factory or a trading company?
We are factory, and in 2008 officially registered ChunLei Machinery.
2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
3.How about price?
We are factory and can give you lower price than the market, and we have a policy “In order to save time and absolutely honest business attitude, we provide the lowest possible quotation for any customer, and can give discounts as needed to the quantity” .
4. How long is the warranty?
Does your company supply the spare parts? One year. Spare parts for you at lowest cost.
5. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
6. What is your payment method?
We usually accept T/T, L/C、Western Union payments;
7. If I need a complete mining rig, can you help us build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
