ZSW Vibrating Feeder For Sale

Vibrating feeder is a kind of equipment that can give lumpy and granular materials from the storage bin to the receiving device evenly, regularly and continuously. Configured before crushing, it is the necessary equipment to ensure the quality of crushing. In the gravel production line, it can feed continuously and evenly for the crushing machinery and screen the materials roughly, which is widely used in the crushing and screening equipment in metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.

ZSW-Vibrating-Feeder

Type of ZSW Vibrating Feeder for Sale – Single Equipment

Vibrating feeder is used to continuously and evenly feed the primary crushing equipment in the gravel production line to avoid the blockage of the crusher receiving port. In the production process, it can feed the lumpy and granular materials in the storage bin to the receiving device continuously, evenly and regularly, thus preventing the receiving device from dying due to uneven feeding and prolonging the service life of the equipment. In addition, it can also separate raw materials mainly through the grate plate.

ZSW-Vibrating-Feeder

Relevant Parameters of ZSW Vibrating Feeder for Sale – Single Equipment

Model Maximum Feed Particle Size (mm) Processing Capacity(t/h) Motor Power(kw) Installation angle (°) Tank Size (mm)
GZD-650×2300 300 80-100 1.1 10-20 650×2300
GZD-750×2500 350 100-130 2×1.1 10-20 750×2500
GZD-850×3000 400 120-150 2×1.5 10-20 850×3000
GZD-1000×3600 500 150-200 2×2.2 10-20 1000×3600
GZD-1100×3600 580 240-300 2×3 10-20 1100×3600
GZD-1300×3600 650 450-600 2×3.7 10-20 1300×3600
GZD-1500×3600 1050 450-1000 2×7.5 10-20 1500×3600
GZD-2000×3600 1200 550-1000 2×10 10-20 2000×3600
GZD-2500×5000 1500 650-1500 2×18 10-20 2500×5000
ZSW-380×96 500 100-280 4p 11 0-5-10-15 3800×960
ZSW-420×110 630 150-400 4p 15 0-5-10 4900×1100
ZSW-490×130 750 400-700 4p 22 0-5-10 4900×1300
ZSW-600×130 750 400-700 4p 22 0-5-10 6000×1300
ZSW-600×150 800 500-900 4p 30 0-5-10 6000×1500
ZSW-600×180 900 700-1300 4p 37 0-5-10 6000×1800
ZSW-600×200 1200 800-1500 4p 55 0-5-10 6000×2000

Note: The output will vary depending on different materials, feed particle size and other factors.

The ZSW Vibrating Feeder can be customized according to production capacity, geography, climate and other factors, and the color can be customized according to customer requirements.

Features of ZSW Vibrating Feeder Machine

Vibrating feeder is configured before crushing to screen the materials coarsely, ensure the crushing quality and feed the crusher continuously and evenly.

ZSW-Vibrating-Feeder
  • Grate design with adjustable gap: Special grate plate design with adjustable gap prevents material clogging and performs primary screening of the material, thus increasing the output.

  • Stable vibration and reliable operation: The spring device can buffer the vibration of the machine body, effectively avoiding the damage of the machine body and prolonging the service life; the excitation force can be adjusted to change and control the flow rate, which is convenient and stable to adjust.

  • High-quality motor: Adopting vibration motor as the excitation source, it has the features of low noise, low power consumption, good adjusting performance, no rapid phenomenon and so on.

  • Simple structure and easy maintenance: Vibrating feeder has simple structure, reliable operation, convenient adjustment and installation, light weight, small volume, and convenient maintenance.

  • Closed structure to avoid dust: Closed structure design can prevent dust pollution, to meet the environmental standards for feeding.

Working Principle of ZSW Vibrating Feeder

Vibrating feeder is composed of feeding trough body, exciter, spring support, transmission device and so on. Trough vibrating feeder vibration source is the exciter, the exciter is composed of two eccentric shafts (main, passive) and gears, driven by the motor through the triangle belt drive the active shaft, and then by the active shaft on the gear meshing passive shaft rotation, the main and passive shafts at the same time, reverse rotation, so that the trough vibration, so that the material flow continuously, to achieve the purpose of conveying materials.

Vibrating-feeder-STRUCTION
Vibrating-feeder-work-principle

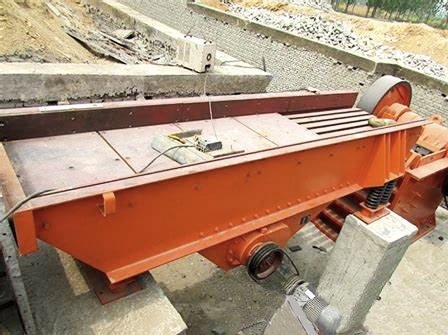

ZSW Vibrating Feeder Application in Crushing Plants

With its good reputation, excellent quality and sound after-sales service, Chunlei machine has won the praise of the world, and has made a big splash in many enterprises at home and abroad!

ZSW-Vibrating-Feeder-site
ZSW-Vibrating-Feeder-site
ZSW-Vibrating-Feeder-site

What Should You Consider When Choosing ZSW Vibrating Feeder?

If you are planning to buy a ZSW Vibrating Feeder, then you need to consider many factors in advance, such as capacity, feed size, discharge aggregate size, application, price, service, return and so on. Here I have listed a few important parts for your reference:

Feeding size

The first thing you should consider is the feed size. Customers should probably know the size of the material aggregate before crushing. Because customized ZSW Vibrating Feeder models are mainly divided according to the feed size.

Capacity should also be one of the factors to consider. If you plan to crush a large amount of aggregate in a short period of time, it is better to choose a large capacity crusher. If there is enough time, a smaller size crusher may be more cost effective.

ZSW Vibrating Feeder cost is the most important aspect for customers to consider. It is very important for customers to choose a ZSW Vibrating Feeder with the best price and within their budget. Chunlei offers different models of crushers with different prices. Please contact us and get the latest ZSW Vibrating Feeder price.

For mining machinery industry, choosing a reliable and serviceable ZSW Vibrating Feeder manufacturer is very important for customers. Crushing production line is a complete set of solutions customized for customers. Therefore, it needs constant communication, follow-up and feedback. The best service can help customers save a lot of maintenance after-sales service costs.

For the mining industry, especially for large-scale mining machinery, it is especially important for customers to choose a reliable and well-served ZSW Vibrating Feeder manufacturer. The crushing line is a complete solution customized for the customer. Therefore, both parties need constant communication, follow-up and feedback. Meticulous service can help customers save a lot of maintenance and after-sale costs.

What Can ChunLei Do for You About ZSW Vibrating Feeder Service?

our-advantages
  • Pre-sales service: 1.Assist customers to prepare the first construction plan; 2. Provide route guidance, reception at any time, and visit our factory at any time.
  • On-sale service: 1. Provide example guidance at any time by phone or email; 2. Install, debug and inspect the equipment, and provide technical support through video.
  • After-sales service: 1. Provide spare parts at the best price for a long time; 2. We provide 1 year warranty and technical support to ensure the smooth operation of the machine.

You may also want to know about ChunLei-FAQ

1. Are you a factory or a trading company?
We are factory, and in 2008 officially registered ChunLei Machinery.

2.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.

3.How about price?
We are factory and can give you lower price than the market, and we have a policy “In order to save time and absolutely honest business attitude, we provide the lowest possible quotation for any customer, and can give discounts as needed to the quantity” .

4. How long is the warranty?
Does your company supply the spare parts? One year. Spare parts for you at lowest cost.

5. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.

6. What is your payment method?
We usually accept T/T, L/C、Western Union payments;

7. If I need a complete mining rig, can you help us build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
